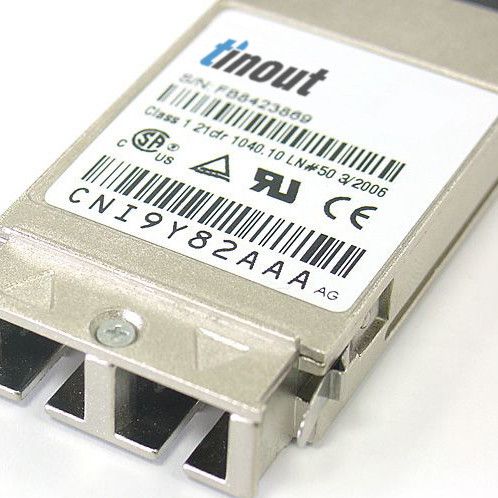

GBIC Transceiver

Features

Single +3.3V or +5V Power Supply
850/1310/1550nm VCSEL/FP/DFB, SM/MM Fiber Optional
Hot-Pluggable Duplex SC Connector
Gigabit Ethernet 1000Base-SX/LX/XD/ZX at 1.25Gb/s Optional
Eye Safety,Designed to Meet Laser Class 1, Compliant with IEC60825-1
Compliant with Telcordia (Bellcore) GR-468-CORE
Compliant with Specifications for IEEE-802.3
Compliant with Gigabit Interface Converter Specification Rev.5.5(1)
Compliant with ANSI Spec.for Fiber Channel Applications at 1.06Gb/s
RoHS Compliant Products Available


Product

Part Number	Data Rate	Source	Wavelength	Voltage	Distance	Output Power	Sensitivity	Connector	Application
PTG-83	1.25Gb/s	-	-	-	0.1km	-	-	RJ45 Cable	Gigabit Ethernet over Cat 5 cable
PTG7685	1.25Gb/s	VCSEL	850nm	5V	0.5km	-9.5¡~-3dBm	=-17dBm	SC	Gigabit Ethernet/ Fiber Channel
PTG7685-3	1.25Gb/s	VCSEL	850nm	3.3V	0.5km	-9.5¡~-3dBm	=-17dBm	SC	Gigabit Ethernet/ Fiber Channel
PTG7631	1.25Gb/s	FB	1310nm	5V	15km	-9.5¡~-3dBm	=-22dBm	SC	Gigabit Ethernet/ Fiber Channel
PTG7631-3	1.25Gb/s	FB	1310nm	3.3V	15km	-9.5¡~-3dBm	=-22dBm	SC	Gigabit Ethernet/ Fiber Channel
PTG763D4	1.25Gb/s	DFB	1310nm	5V	40km	-2¡~+3dBm	=-23dBm	SC	Gigabit Ethernet/ Fiber Channel
PTG763D4-3	1.25Gb/s	DFB	1310nm	3.3V	40km	-2¡~+3dBm	=-23dBm	SC	Gigabit Ethernet/ Fiber Channel
PTG765D8	1.25Gb/s	DFB	1550nm	5V	80km	-2¡~+3dBm	=-24dBm	SC	Gigabit Ethernet/ Fiber Channel
PTG765D8-3	1.25Gb/s	DFB	1550nm	3.3V	80km	-2¡~+3dBm	=-24dBm	SC	Gigabit Ethernet/ Fiber Channel
PTG765D100	1.25Gb/s	DFB	1550nm	5V	100km	=0dBm	=-32dBm	SC	Gigabit Ethernet/ Fiber Channel
PTG765D100-3	1.25Gb/s	DFB	1550nm	3.3V	100km	=0dBm	=-32dBm	SC	Gigabit Ethernet/ Fiber Channel

Note:
1. Add Capital ""F"" at the End of Part # for RoHS Compliant (Lead Free)Products.
2.The Distance Listed Above is Recommended for Reference.
